The future technology In Wireless communication
The future technology In Wireless communication
ABSTRACT
Whether you’re using wireless internet in a coffee shop, stealing it from the guy next door, or competing for bandwidth at a conference, you have probably gotten frustrated at the slow speeds you face when more than one device is tapped into the network. As more and more people and their many devices access wireless internet, clogged airwaves are going to make it. One germen phycist.Harald Haas has come up with a solution he calls “data through illumination” –taking the fibber out of fiber optic by sending data through an LED light bulb that varies in intensity faster than the human eye can follow. It’s the same idea band behind infrared remote controls but far more powerful. Haas says his invention, which he calls DLIGHT, can produce data rates faster than 10 megabits per second, which is speedier than your average broadband connection. He envisions a future where data for laptops, smart phones, and tablets is transmitted through the light in a room. And security would be snap – if you can’t see the light, you can’t access the data.Li-Fi is a VLC, visible light communication, technology developed by a team of scientists including Dr Gordon Povey, Prof. Harald Haas and Dr Mostafa Afgani at the University of Edinburgh. The term Li-Fi was coined by Prof. Haas when he amazed people by streaming high-definition video from a standard LED lamp, at TED Global in July 2011. Li-Fi is now part of the Visible Light Communications (VLC) PAN IEEE 802.15.7 standard. “Li-Fi is typically implemented using white LED light bulbs. These devices are normally used for illumination by applying a constant current through the LED. However, by fast and subtle variations of the current, the optical output can be made to vary at extremely high speeds. Unseen by the human eye, this variation is used to carry high-speed data,” says Dr Povey, , Product Manager of the University of Edinburgh's Li-Fi Program ‘D-Light Project’.
INTRODUCTION
LiFi is transmission of data through illumination by taking the fiber out of fiber optics by sending data through a LED light bulb that varies in intensity faster than the human eye can follow.Li-Fi is the term some have used to label the fast and cheap wireless communication system, which is the optical version of Wi-Fi. The term was first used in this context by Harald Haas in his TED Global talk on Visible Light Communication. “At the heart of this technology is a new generation of high brightness light-emitting diodes”, says Harald Haas from the University of Edinburgh, UK, ”Very simply, if the LED is on, you transmit a digital 1, if it’s off you transmit a 0,”Haas says, “They can be switched on and off very quickly, which gives nice opportunities for transmitted data.”It is possible to encode data in the light by varying the rate at which the LEDs flicker on and off to give different strings of 1s and 0s.The LED intensity is modulated so rapidly that human eye cannot notice, so the output appears constant. More sophisticated techniques could dramatically increase VLC data rate. Terms at the University of Oxford and the University of Edingburgh are focusing on parallel data transmission using array of LEDs, where each LED transmits a different data stream. Other group are using mixtures of red, green and blue LEDs to alter the light frequency encoding a different data channel. Li-Fi, as it has been dubbed, has already achieved blisteringly high speed in the lab. Researchers at the Heinrich Hertz Institute in Berlin, Germany, have reached data rates of over 500 megabytes per second using a standard white-light LED. The technology was demonstrated at the 2012 Consumer Electronics Show in Las Vegas using a pair of Casio smart phones to exchange data using light of varying intensity given off from their screens, detectable at a distance of up to ten metres.Light is inherently safe and can be used in places where radio frequency communication is often deemed problematic, such as in aircraft cabins or hospitals. So visible light communication not only has the potential to solve the problem of lack of spectrum space, but can also enable novel application. The visible light spectrum is unused; it's not regulated, and can be used for communication at very high speeds.
Fig.1 Li-Fi environment
In October 2011 a number of companies and industry groups formed the Li-Fi Consortium, to promote high-speed optical wireless systems and to overcome the limited amount of radiobased wireless spectrum available by exploiting a completely different part of the electromagnetic spectrum. The consortium believes it is possible to achieve more than 10 Gbps, theoretically allowing a high-definition film to be downloaded in 30 seconds.

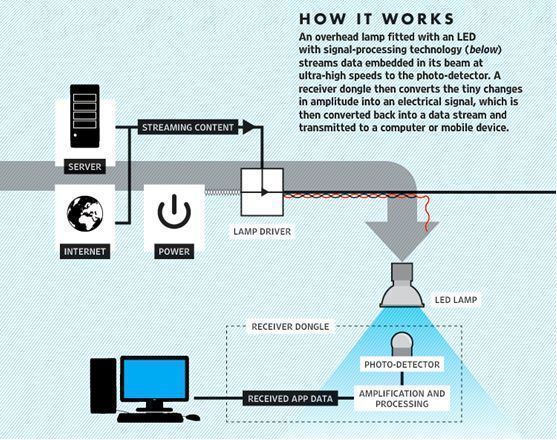

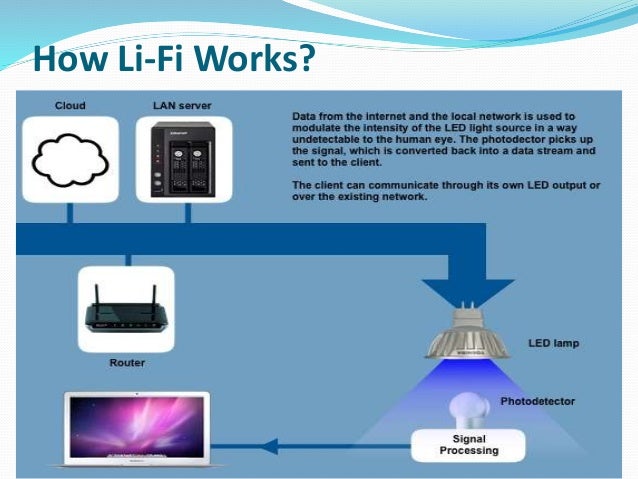

WORKING TECHNOLOGY
This brilliant idea was first showcased by Harald Haas from University of Edinburgh, UK, in his TED Global talk on VLC. He explained,” Very simple, if the LED is on, you transmit a digital 1, if it’s off you transmit a 0. The LEDs can be switched on and off very quickly, which gives nice opportunities for transmitting data.” So what you require at all are some LEDs and a controller that code data into those LEDs. We have to just vary the rate at which the LED’s flicker depending upon the data we want to encode. Further enhancements can be made in this method, like using an array of LEDs for parallel data transmission, or using mixtures of red, green and blue LEDs to alter the light’s frequency with each frequency encoding a different data channel. Such advancements promise a theoretical speed of 10 Gbps – meaning you can download a full high-definition film in just 30 seconds. Simply awesome! But blazingly fast data rates and depleting bandwidths worldwide are not the only reasons that give this technology an upper hand. Since Li-Fi uses just the light, it can be used safely in aircrafts and hospitals that are prone to interference from radio waves. This can even work underwater where Wi-Fi fails completely, thereby throwing open endless opportunities for military operations.
Imagine only needing to hover under a street lamp to get public internet access, or downloading a movie from the lamp on your desk. There's a new technology on the block which could, quite literally as well as metaphorically, 'throw light on' how to meet the ever-increasing demand for high-speed wireless connectivity. Radio waves are replaced by light waves in a new method of data transmission which is being called Li-Fi.Light-emitting diodes can be switched on and off faster than the human eye can detect, causing the light source to appear to be on continuously. A flickering light can be incredibly annoying, but has turned out to have its upside, being precisely what makes it possible to use light for wireless data transmission. Light-emitting diodes (commonly referred to as LEDs and found in traffic and street lights, car brake lights, remote control units and countless other applications) can be switched on and off faster than the human eye can detect, causing the light source to appear to be on continuously, even though it is in fact 'flickering'. This invisible on-off activity enables a kind of data transmission using binary codes: switching on an LED is a logical '1', switching it off is a logical '0'. Information can therefore be encoded in the light by varying the rate at which the LEDs flicker on and off to give different strings of 1s and 0s. This method of using rapid pulses of light to transmit information wirelessly is technically referred to as Visible Light Communication (VLC), though it’s potential to compete with conventional Wi-Fi has inspired the popular characterization Li-Fi.
Visible light communication (VLC)-“A potential solution to the global wireless spectrum shortage”
LiFi (Light Fidelity) is a fast and cheap optical version of Wi-Fi, the technology of which is based on Visible Light Communication (VLC).VLC is a data communication medium, which uses visible light between 400 THz (780 nm) and 800 THz (375 nm) as optical carrier for data transmission and illumination. It uses fast pulses of light to transmit information wirelessly. The main components of this communication system are 1) a high brightness white LED, Which acts as a communication source and 2) a silicon photodiode which shows good response to visible wavelength region serving as the receiving element? LED can be switched on and off to generate digital strings of 1s and 0s. Data can be encoded in the light to generate a new data stream by varying the flickering rate of the LED. To be clearer, by modulating the LED light with the data signal, the LED illumination can be used as a communication source. As the flickering rate is so fast, the LED output appears constant to the human eye. A data rate of greater than 100 Mbps is possible by using high speed LEDs with appropriate multiplexing techniques. VLC. data rate can be increased by parallel data transmission using LED arrays where each LED transmits a different data stream. There are reasons to prefer LED as the light source in VLC while a lot of other illumination devices like fluorescent lamp, incandescent bulb etc. are available.
Fig 2.Data transmission using LED
COMPARISION BETWEEN Li-Fi & Wi-Fi
LI-FI is a term of one used to describe visible light communication technology applied to high speed wireless communication. It acquired this name due to the similarity to WI-FI, only using light instead of radio.WI-FI is great for general wireless coverage within buildings, and li-fi is ideal for high density wireless data coverage in confined area and for relieving radio interference issues, so the two technologies can be considered complimentary.
Table 1.Comparison between current and future wireless technology
The table also contains the current wireless technologies that can be used for transferring data between devices today, i.e. Wi-Fi, Bluetooth and IrDA. Only Wi-Fi currently offers very high data rates. The IEEE 802.11.n in most implementations provides up to 150Mbit/s (in theory the standard can go to 600Mbit/s) although in practice you receive considerably less than this. Note that one out of three of these is an optical technology.
How it is different?
Li-Fi technology is based on LEDs for the transfer of data. The transfer of the data can be with the help of all kinds of light, no matter the part of the spectrum that they belong. That is, the light can belong to the invisible, ultraviolet or the visible part of the spectrum. Also, the speed of the internet is incredibly high and you can download movies, games, music etc in just a few minutes with the help of this technology. Also, the technology removes limitations that have been put on the user by the Wi-Fi. You no more need to be in a region that is Wi-Fi enabled to have access to the internet. You can simply stand under any form of light and surf the internet as the connection is made in case of any light presence. There cannot be anything better than this technology.
Fig 3.Working and advantages
APPLICATION OF LI-FI:-
You Might Just Live Longer
For a long time, medical technology has lagged behind the rest of the wireless world. Operating rooms do not allow Wi-Fi over radiation concerns, and there is also that whole lack of dedicated spectrum. While Wi-Fi is in place in many hospitals, interference from cell phones and computers can block signals from monitoring equipment. Li-Fi solves both problems: lights are not only allowed in operating rooms, but tend to be the most glaring (pun intended) fixtures in the room. And, as Haas mentions in his TED Talk, Li-Fi has 10,000 times the spectrum of Wi-Fi, so maybe we can, I don’t know, delegate red light to priority medical data. Code Red!
Airlines:
Airline Wi-Fi. Ugh. Nothing says captive audience like having to pay for the "service" of dial-up speed Wi-Fi on the plane. And don’t get me started on the pricing. The best I’ve heard so far is that passengers will "soon" be offered a "high-speed like" connection on some airlines. United is planning on speeds as high as 9.8 Mbps per plane. Uh, I have twice that capacity in my living room. And at the same price as checking a bag, I expect it. Li-Fi could easily introduce that sort of speed to each seat's reading light. I’ll be the guy wowing next to you. It’s better than listening to you tell me about your wildly successful son, ma’am.
Smarter Power Plants:
Wi-Fi and many other radiation types are bad for sensitive areas. Like those surrounding power plants. But power plants need fast, inter-connected data systems to monitor things like demand, grid integrity and (in nuclear plants) core temperature. The savings from proper monitoring at a single power plant can add up to hundreds of thousands of dollars. Li-Fi could offer safe, abundant connectivity for all areas of these sensitive locations. Not only would this save money related to currently implemented solutions, but the draw on a power plant’s own reserves could be lessened if they haven’t yet converted to LED lighting.
Undersea Awesomeness:
Underwater ROVs, those favorite toys of treasure seekers and James Cameron, operate from large cables that supply their power and allow them to receive signals from their pilots above. ROVs work great, except when the tether isn’t long enough to explore an area, or when it gets stuck on something. If their wires were cut and replaced with light — say from a submerged, high-powered lamp — then they would be much freer to explore. They could also use their headlamps to communicate with each other, processing data autonomously and referring findings periodically back to the surface, all the while obtaining their next batch of orders.
It Could Keep You Informed and Save Lives
Say there’s an earthquake in New York. Or a hurricane. Take your pick — it’s a wacky city. The average New Yorker may not know what the protocols are for those kinds of disasters. Until they pass under a street light, that is. Remember, with Li-Fi, if there’s light, you’re online. Subway stations and tunnels, common dead zones for most emergency communications, pose no obstruction. Plus, in times less stressing cities could opt to provide cheap high-speed Web access to every street corner.
USES IN VARIOUS AREAS
Can be used in the places where it is difficult to lay the optical fiber like hospitals. In operation theatre LiFi can be used for modern medical instruments. In traffic signals LiFi can be used which will communicate with the LED lights of the cars and accident numbers can be decreased. Thousand and millions of street lamps can be transferred to LiFi lamps to transfer data. In aircraft LiFi can be used for data transmission.
It can be used in petroleum or chemical plants where other transmission or frequencies could be hazardous.
Genesis of LI-FI:
Harald Haas, a professor at the University of Edinburgh who began his research in the field in 2004, gave a debut demonstration of what he called a Li-Fi prototype at the TED Global conference in Edinburgh on 12th July 2011. He used a table lamp with an LED bulb to transmit a video of blooming flowers that was then projected onto a screen behind him. During the event he periodically blocked the light from lamp to prove that the lamp was indeed the source of incoming data. At TED Global, Haas demonstrated a data rate of transmission of around 10Mbps -- comparable to a fairly good UK broadband connection. Two months later he achieved 123Mbps.
How it is different?
Li-Fi technology is based on LEDs for the transfer of data. The transfer of the data can be with the help of all kinds of light, no matter the part of the spectrum that they belong. That is, the light can belong to the invisible, ultraviolet or the visible part of the spectrum. Also, the speed of the internet is incredibly high and you can download movies, games, music etc in just a few minutes with the help of this technology.
Also, the technology removes limitations that have been put on the user by the Wi-Fi. You no more need to be in a region that is Wi-Fi enabled to have access to the internet. You can simply stand under any form of light and surf the internet as the connection is made in case of any light presence. There cannot be anything better than this technology.
To further get a grasp of Li-Fi consider an IR remote. It sends a single data stream of bits at the rate of 10,000-20,000 bps. Now replace the IR LED with a Light Box containing a large LED array.
'Li-fi' via LED light bulb data speed break through
UK researchers say they have achieved data transmission speeds of 10Gbit/s via "li-fi" - wireless internet connectivity using light.
The researchers used a micro-LED light bulb to transmit 3.5Gbit/s via each of the three primary colours - red, green, blue - that make up white light.
This means over 10Gbit/s is possible. Li-fi is an emerging technology that could see specialised LED lights bulbs providing low-cost wireless internet connectivity almost everywhere.
High speed
The research, known as the ultra-parallel visible light communications project, is a joint venture between the universities of Edinburgh, St Andrews, Strathclyde, Oxford, and Cambridge, and funded by the Engineering and Physical Sciences Research Council.
The tiny micro-LED bulbs, developed by the University of Strathclyde, Glasgow, allow streams of light to be beamed in parallel, each multiplying the amount of data that can be transmitted at any one time.
"If you think of a shower head separating water out into parallel streams, that's how we can make light behave," said Prof Harald Haas, an expert in optical wireless communications at the University of Edinburgh and one of the project leaders.
Using a digital modulation technique called Orthogonal Frequency Divisional Multiplexing (OFDM), researchers enabled micro-LED light bulbs to handle millions of changes in light intensity per second, effectively behaving like an extremely fast on/off switch.
This allows large chunks of binary data - a series of ones and zeros - to be transmitted at high speed.
Earlier this year, Germany's Fraunhofer Heinrich Hertz Institute claimed that data rates of up to 1Gbit/s per LED light frequency were possible in laboratory conditions. And this month, Chinese scientists reportedly developed a microchipped LED bulb that can produce data speeds of up to 150 megabits per second (Mbps), with one bulb providing internet connectivity for four computers.
'Light fidelity'
Prof Harald Haas has been in the forefront of "li-fi" research for the last 10 years
In 2011, Prof Haas demonstrated how an LED bulb equipped with signal processing technology could stream a high-definition video to a computer.
He coined the term "light fidelity" or li-fi - also known as visual light communications (VLC) - and set up a private company, PureVLC, to exploit the technology.
Li-fi promises to be cheaper and more energy-efficient than existing wireless radio systems given the ubiquity of LED bulbs and the fact that lighting infrastructure is already in place.
Visible light is part of the electromagnetic spectrum and its bandwidth is 10,000 times bigger than the radio frequency spectrum used by existing communication systems, affording vastly greater capacity. Another advantage, Prof Haas argues, is that evenly spaced LED transmitters could provide much more localised and consistent internet connectivity throughout buildings.
The disadvantage of traditional wi-fi routers is that the signal weakens the further you are away from it, leading to inconsistent connectivity within offices and homes.
Prof Haas also believes light's inability to penetrate walls makes VLC technology potentially more secure than traditional wi-fi connectivity.
One-watt LED light bulb would be enough to provide net connectivity to four computers, researchers say. But experts told the BBC more evidence was needed to back up the claims. There are no supporting video or photos showing the technology in action.
Li-fi, also known as visible light communications (VLC), at these speeds would be faster - and cheaper - than the average Chinese broadband connection.
In 2011, Prof Harald Haas, an expert in optical wireless communications at the University of Edinburgh, demonstrated how an LED bulb equipped with signal processing technology could stream a high-definition video to a computer. He coined the term "light fidelity" or li-fi and set up a private company, PureVLC, to exploit the technology.
"We're just as surprised as everyone else by this announcement," PureVLC spokesman Nikola Serafimovski told the BBC.
"But how valid this is we don't know without seeing more evidence. We remain sceptical."
This year, the Fraunhofer Heinrich Hertz Institute claimed that data rates of up to 1Gbit/s per LED light frequency were possible in laboratory conditions, making one bulb with three colours potentially capable of transmitting data at up to 3Gbit/s.
Edinburgh University's Prof Harald Haas coined the term "li-fi"
Unlimited capacity
Li-fi promises to be cheaper and more energy-efficient than existing wireless radio systems given the ubiquity of LED bulbs and the fact that lighting infrastructure is already in place.
Visible light is part of the electromagnetic spectrum and 10,000 times bigger than the radio spectrum, affording potentially unlimited capacity. But there are drawbacks: block the light and you block the signal. However, this is also a potential advantage from a security point of view. Light cannot penetrate walls as radio signals can, so drive-by hacking of wireless internet signals would be far more difficult, if not impossible.
Prof Chi's research team includes scientists from the Shanghai Institute of Technical Physics at the Chinese Academy of Sciences, the report says. She admitted that the technology was still in its infancy and needed further developments in microchip design and optical communication controls before it could go mass market.
Her team is hoping to show off sample li-fi kits at the China International Industry Fair in Shanghai on 5 November, the report said.
REFERENCES
[1] seminarprojects.com/s/seminar-report-on-lifi
[2] http://en.wikipedia.org/wiki/Li-Fi
[3] http://teleinfobd.blogspot.in/2012/01/what-is-lifi.html
[4] technopits.blogspot.comtechnology.cgap.org/2012/01/11/a-lifi-world/
[5] www.lificonsortium.org/
[6] the-gadgeteer.com/2011/08/29/li-fi-internet-at-thespeed-of-light/
[7] en.wikipedia.org/wiki/Li-Fi
[9] dvice.com/archives/2012/08/lifi-ten-ways-i.php
[10] Will Li-Fi be the new Wi-Fi?, New Scientist, by Jamie Condliffe, dated 28 July 2011
[11] http://www.digplanet.com/wiki/Li-Fi
[12] ”Visible-light communication: Tripping the light fantastic: A fast and cheap optical version of Wi-Fi is coming”, Economist, dated 28Jan 2012.
